HOM - FS RB 08 & HS RB 09
Spike Tyre Killers (Flat)
Key Features:
- Remote/Button operated
- Below ground assembly (Flat Type)
- Length upto 8 mtrs
- Industrial grade steel chassis
- Electro-mechanical Drive
- Sharp wedge spikes for halting vehicle movement
15 Years Service Life
Guaranteed quality & AMC
3 OEM Factories
10,875 sq ft. in Ghaziabad
PAN India + Global
Delivery & Installation
OEM & ODM Capable
Support product customization
Technical Specification
Engineering data at a glance

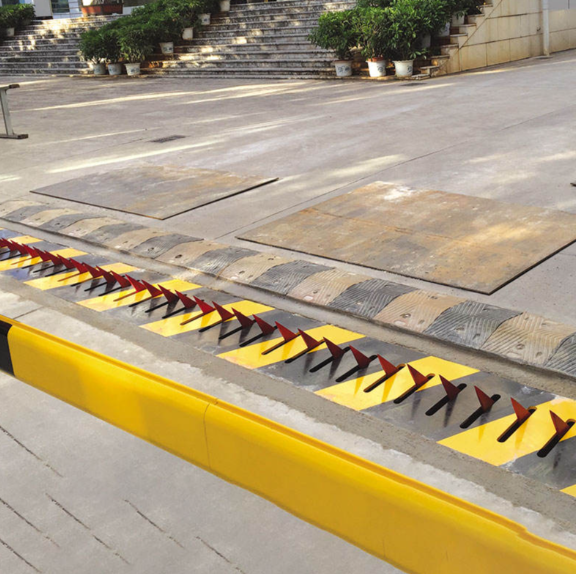

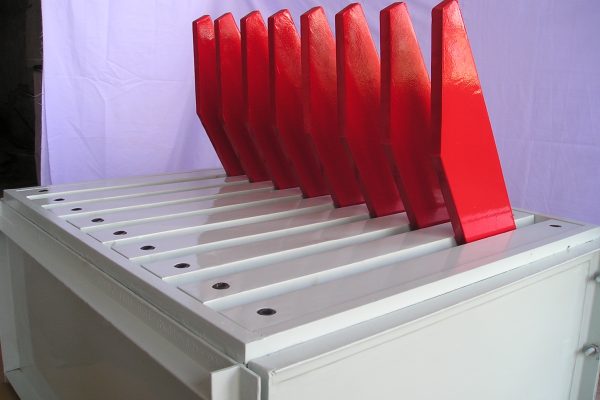

Sharp wedge spike structure to destroy intruder vehicle’s axles and tyres.
Our high-performance Spike Tyre Killer Systems combine strength, reliability, and intelligent engineering to create an effective hostile vehicle mitigation solution. Designed for critical entry points, they offer smooth operation, rugged durability, and enhanced perimeter protection.
| Chassis Build Material (MOC) | Structural Steel |
|---|---|
| Surface Treatment | Anti Corrosive Primer Treatment + Color Spray Coating |
| Color | Red Spikes with Yellow Base |
| Mounting Type | Under the ground (Flat Type) |
| Blocking Clear Length | Up to 6 mtr (or as per custom size – user defined) |
| Blocking Spike Height | 100 mm (or as per custom size – user defined) |
| Width | 450 mm (or as per custom size – user defined) |
| Buried Depth | 175 mm |
| Driving Mechanism | Electro-mechanical (Standard) / Hydraulic Power Unit (Optional) |
| Controller | 8051 based AT brain, microprocessor control panel |
Technical Documents
Download the complete
documentation
How it works
The operating principle
Upon receiving a command from the control switch or access control system, the Tyre Killer controller activates the motorized/hydraulic power unit and initiates the operating cycle.
The electric motor drives the geardrive/hydraulic pump, generating crank rotation integrated inside the Tyre Killer assembly.
Crank movement drives shaft rotation which enbales raising or lowering of the spikes, while integrated LED indicators and audible warning systems operate simultaneously during movement for enhanced operational safety and visibility.
installation & Integration
Site requirements and access-
control integration
Civil & Power Requirements
| Pit Size | 600 x 3000 mm |
|---|---|
| Foundation Depth | 200 mm |
| Ground Fastener | RCC |
| Power Required | 220 VAC |
| Foundation Rebar | Angular sections in place |
| Over Ground Area | Flat surface |
Access Control Options
Key Benefits
Why choose HOM Automation
Max security. High crash-impact resistance standards.
Quick deployment within 2-3 seconds.
Motorized/Hydraulic Drive Options.
Non-monopolized parts, spares as per market standard.
Seamless integration with RFID/ANPR/3rd party ACS-APIs.
Built for high-security
environments

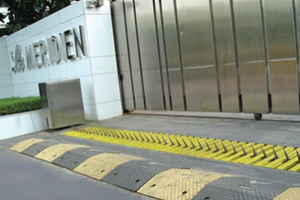

Hotels
Perimeter and apron protection at international airports & cargo hubs.
Defence & Military
Base entrances, ammunition depots, strategic installations.
Government
Embassies, ministries,
parliament &
courts,
governor residences.
Industrial Plants
Refineries, power plants, seaports, manufacturing & data centres.
Corporate Parks
Tamper-proof control of commercial vehicle lanes & revenue points.
