HOM Railway Barrier

MANUFACTURER

HOM - Railway LC BB 07

Railway LC Gate Barriers

Railway LC Gate Barriers are automatic access control systems with zinc-coated CRCA steel cabinets and galvanized, color-coated finish. Featuring tapered aluminium boom arms with dual side steel counterweights, 8–10 second rising/lowering operation, microprocessor-based control, integrated safety sensors, and optional LED indicators, these barriers ensure secure and efficient management of railway and traffic intersections.

Key Features:

  • High Torque 24V DC Motor
  • Tapered Sheetmetal Arm 4 Sections
  • Integration with Train Sensors & Traffic Signals
  • Length upto 32 feet
  • Pulley belt motorized drive
  • Tall cabinet with angular foundation
Get A Quote

15 Years Service Life

Guaranteed quality & AMC

3 OEM Factories

10,875 sq ft. in Ghaziabad

PAN India + Global

Delivery & Installation

OEM & ODM Capable

Support product customization

Technical Specification

Engineering data at a glance

Smart Boom Barriers to mitigate unauthorized entry into premises.

Our high-performance Boom Barrier Systems offer quick open/close options along with long time reliability to create an effective unauthorized vehcile access mitigation solution. Designed for entry/exit points, they offer smooth operation, rugged durability, and enhanced security control.

Truly manufactured in India
All parts manufactured at Indian Factory
ISO 9001:2015 Certified
Manufacturing Standards
Non-monopolized Parts
Industry standard assembly
Spare parts availability
Adequate ready stock
Cabinet Material Zinc Coated CRCA Steel
Cabinet Size 200W × 375L × 1050H mm
Surface Treatment Color coating & galvanization treatment
Color Yellow / Black Stripes
Boom Material Aluminium (Standard) / Steel (Optional)
Counterweights Dual Side Steel Plates
Boom Arm Type / Size Tapered Aluminium SheetmetalStart from Box: 200 × 180 mmEnd Rest Side: 100 × 180 mm
Boom Arm Length 6 mtr to 12 mtr
LED Indicator Red / Green / Yellow

Technical Documents

Download the complete
documentation

Product Brochure

Download

Technical Datasheet

Download

How it works

The operating principle

Upon receiving a command from the control switch or access control system, the Boom Barrier controller activates the motorized power unit and initiates the operating cycle.

The DC motor drives the geardrive, generating crank rotation integrated inside the Boom Barrier gearbox assembly.

Crank movement drives shaft rotation which enbales raising or lowering of the Boom Barrier Arm, while integrated LED indicators and audible warning systems operate simultaneously during movement for enhanced operational safety and visibility.

installation & Integration

Site requirements and access-
control integration

Civil & Power Requirements

Pit Size 450 x 450 mm
Foundation Depth 100 mm
Ground Fastener Anchor Fastener
Power Required 220 VAC
Foundation PCC
Over Ground Area 100 mm raised

Access Control Options

RFID-UHF
ANPR
Remote
Push Button
Biometric
3rd party API
Loop Detector
Photocell
Traffic Lights

Key Benefits

Why choose HOM Automation

Moderate security. High reliabilty due to PMDC Motor.

Quick deployment within 6 seconds.

Motorized/Hydraulic Drive Options.

Non-monopolized parts, spares as per market standard.

Seamless integration with RFID/ANPR/3rd party ACS-APIs.

Where it’s used

Built for high-security
environments

Hotels

Perimeter and apron protection at international airports & cargo hubs.

Defence & Military

Base entrances, ammunition depots, strategic installations.

Government

Embassies, ministries, parliament &
courts, governor residences.

Industrial Plants

Refineries, power plants, seaports, manufacturing & data centres.

Corporate Parks

Tamper-proof control of commercial vehicle lanes & revenue points.

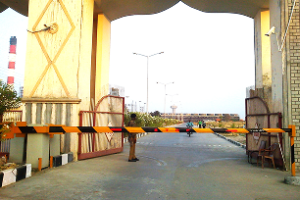

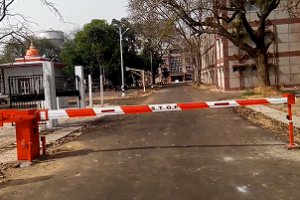

gallery

Installation By
HOM Automation

Rectangle 2
Rectangle 3
Rectangle 5
Rectangle 6
Other Products

Choose the right configuration

Long Arm Barriers Boom Barriers

Long Arm Barriers (9M)

Folding Barriers

Folding Arm Barriers

Toll Plaza Barriers (Swing Arm)

Toll Plaza Barriers (Swing Arm)

Trusted By India’s Best

Our PAN India clientele

Frequently Asked questions

Answers from our engineering team

Railway LC Gate Barriers are designed for wide crossing applications and support boom lengths of up to 32 feet. The tapered multi-section sheet metal arm provides stability across longer spans, making it suitable for railway level crossings, industrial rail yards, and restricted transport corridors.
Yes, the barrier can be integrated with train sensors, traffic signaling systems, warning lights, and automated control mechanisms. This integration enables synchronized gate operation, helping improve safety and traffic management at railway crossings and transport infrastructure facilities.
The system utilizes a high-torque 24V DC motor combined with a motorized pulley belt drive mechanism. This configuration delivers smooth boom movement, reliable operation, and efficient performance for frequent opening and closing cycles in demanding environments.
The four-section tapered sheet metal arm reduces overall boom weight while maintaining structural strength across longer lengths. This design helps improve balance, operational stability, and durability, making it ideal for large railway crossing barriers and wide access control points.
Railway LC Gate Barriers are built with a tall cabinet design, angular foundation support, and heavy-duty operating components for long-term outdoor use. Combined with traffic signal integration and automated control capabilities, they provide dependable access control and enhanced safety at railway level crossings.
