Hom Boom Barrier

MANUFACTURER

HOM - DC BB 01

DC Boom Barriers

DC Boom Barriers provide reliable and precise vehicle entry control using zinc-coated CRCA steel cabinets and aluminium rectangular booms with single support. Equipped with a permanent magnet brushed DC motor with rotor armature winding, DUPONT H-class insulation, and low 4.2A current consumption, these barriers offer smooth 6-second operation and long lifecycle. Microprocessor-based control with photocell sensors and infrared positioning ensures accurate boom movement. Ideal for toll plazas, commercial complexes, and high-security zones requiring durable, fast, and precise barrier solutions.

Key Features:

  • High Torque 24V DC Motor
  • Stronger Arm 100X50X1.5MM
  • Integration with UHF/ANPR
  • Low Power Consumption Mechanism
  • Carbon Steel Gear Unit
  • Zinc Coated Color Cabinet
Get A Quote

15 Years Service Life

Guaranteed quality & AMC

3 OEM Factories

10,875 sq ft. in Ghaziabad

PAN India + Global

Delivery & Installation

OEM & ODM Capable

Support product customization

Technical Specification

Engineering data at a glance

Smart Boom Barriers to mitigate unauthorized entry into premises.

Our high-performance Boom Barrier Systems offer quick open/close options along with long time reliability to create an effective unauthorized vehcile access mitigation solution. Designed for entry/exit points, they offer smooth operation, rugged durability, and enhanced security control.

Truly manufactured in India
All parts manufactured at Indian Factory
ISO 9001:2015 Certified
Manufacturing Standards
Non-monopolized Parts
Industry standard assembly
Spare parts availability
Adequate ready stock
Cabinet Material Zinc Coated CRCA Steel
Cabinet Size 200W × 375L × 1050H mm
Surface Treatment Color coating & galvanization treatment
Color Black (Check stock before buying)
Boom Material Aluminium Rectangular Profile
Boom Supports Yes, one support
Boom Arm Size 100 × 50 mm
Boom Arm Length Max 6 mtr
LED Indicator Red / Green / Yellow (Optional)
Blocking Height 900 mm

Technical Documents

Download the complete
documentation

Product Brochure

Download

Technical Datasheet

Download

How it works

The operating principle

Upon receiving a command from the control switch or access control system, the Boom Barrier controller activates the motorized power unit and initiates the operating cycle.

The DC motor drives the geardrive, generating crank rotation integrated inside the Boom Barrier gearbox assembly.

Crank movement drives shaft rotation which enbales raising or lowering of the Boom Barrier Arm, while integrated LED indicators and audible warning systems operate simultaneously during movement for enhanced operational safety and visibility.

installation & Integration

Site requirements and access-
control integration

Civil & Power Requirements

Pit Size 450 x 450 mm
Foundation Depth 100 mm
Ground Fastener Anchor Fastener
Power Required 220 VAC
Foundation PCC
Over Ground Area 100 mm raised

Access Control Options

RFID-UHF
ANPR
Remote
Push Button
Biometric
3rd party API
Loop Detector
Photocell
Traffic Lights

Key Benefits

Why choose HOM Automation

Moderate security. High reliabilty due to PMDC Motor.

Quick deployment within 6 seconds.

Motorized/Hydraulic Drive Options.

Non-monopolized parts, spares as per market standard.

Seamless integration with RFID/ANPR/3rd party ACS-APIs.

Where it’s used

Built for high-security
environments

Hotels

Perimeter and apron protection at international airports & cargo hubs.

Defence & Military

Base entrances, ammunition depots, strategic installations.

Government

Embassies, ministries, parliament &
courts, governor residences.

Industrial Plants

Refineries, power plants, seaports, manufacturing & data centres.

Corporate Parks

Tamper-proof control of commercial vehicle lanes & revenue points.

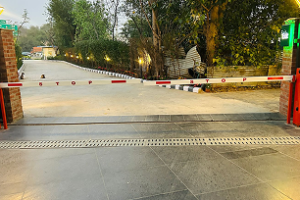

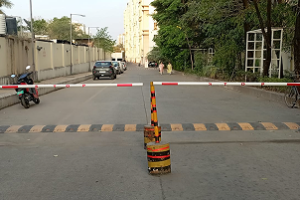

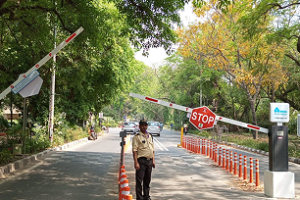

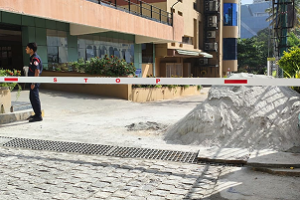

gallery

Installation By
HOM Automation

Rectangle 6
Rectangle 7
Rectangle 8
Rectangle 5
Other Products

Choose the right configuration

Long Arm Barriers Boom Barriers

Long Arm Barriers (9M)

HOM Railway Barrier

Railway LC Gate Barriers

Folding Barriers

Folding Arm Barriers

Trusted By India’s Best

Our PAN India clientele

Frequently Asked questions

Answers from our engineering team

Yes, the DC Boom Barrier supports integration with UHF RFID readers, ANPR cameras, remote controls, and access management systems. This allows automated vehicle identification, reduced manual intervention, and faster entry and exit processing at secured locations.
The barrier is powered by a high-torque 24V DC motor designed for smooth operation and low power consumption. Combined with a carbon steel gear unit, it delivers reliable performance for continuous vehicle access control applications.
The barrier supports boom arm lengths ranging from 4 to 6 meters, making it suitable for parking facilities, residential communities, commercial complexes, and industrial access points.
DC Boom Barriers offer energy-efficient operation, faster response times, and reduced mechanical wear. Their low-power mechanism helps lower operating costs while maintaining consistent performance in busy access control environments.
The barrier can be equipped with photocell sensors, loop detectors, flashing indicators, and traffic signaling systems to improve vehicle detection, operational safety, and controlled traffic flow.
