MANUFACTURER
HOM - Auto RG MS 01

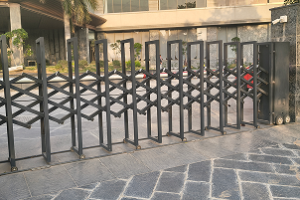

Motorized Retractable Gates
Key Features:
- Internal Chassis Material - Steel gear-unit
- Motor Power - 375 to 1500 Watts
- Controller 8051 based PCB
- Remote/button operated
- Integration with UHF/ANPR
- Open/close speed - 1 feet per second
15 Years Service Life
Guaranteed quality & AMC
3 OEM Factories
10,875 sq ft. in Ghaziabad
PAN India + Global
Delivery & Installation
OEM & ODM Capable
Support product customization
Technical Specification
Engineering data at a glance
Smart Automatic Gates to implemented at high traffic entry/exit points.
Our Gate Automation Systems offer wireless remote/button command for open/close options along with high mechanical reliability. Designed for continuous operation at entry/exit points, our Gate Automation Systems offer quick open/close cycles, rugged usage, and enhanced security control.
| Gate Material | Color Coated Steel |
|---|---|
| Color | Grey / Custom |
| Wheel Material | Rust-Free Nylon with Steel Rods |
| Sensors Equipped | IR Beam Sensors for Soft Start / Stop |
| Mechanism | Motorized Gear-Chained Drive |
| Movement | On-Track Rods |
| Gate Width | 500 mm |
| Gate Height | 1200 – 1600 mm |
| Gate Length | 6 mtr – 12 mtr |
| Openable Door | Yes |
Technical Documents
Download the complete
documentation
How it works
The operating principle
Upon receiving a command from the control switch or access control system, the Gate controller activates the motorized power unit and initiates the operating cycle.
The AC/DC motor inside the Gate Automation System drives the geardrive, generating crank rotation integrated inside the gearbox assembly.
Thus enabling entry/exit of the vehicle, while integrated LED indicators and siren buzzers which can operate simultaneously during movement for enhanced visibility.
installation & Integration
Site requirements and access-
control integration
Civil & Power Requirements
| Pit | 300 x 600 mm |
|---|---|
| Foundation Depth | 100 mm |
| Ground Fastener | T-bolts |
| Power Required | 220 VAC |
| Foundation | PCC |
| Over Ground Area | Flat mounted |
Access Control Options
Key Benefits
Why choose HOM Automation
High reliabilty. AC/DC Motors.
Quick open/close cycle.
Swing/Sliding/Retracting Movement Type.
Non-monopolized parts, spares as per market standard.
Seamless integration with 3rd party ACS-APIs.
Built for high-security
environments
Hotels
Perimeter and apron protection at international airports & cargo hubs.
Defence & Military
Base entrances, ammunition depots, strategic installations.
Government
Embassies, ministries, parliament & courts, governor residences.
Industrial Plants
Refineries, power plants, seaports, manufacturing & data centres.
Corporate Parks
Tamper-proof control of commercial vehicle lanes & revenue points.
