P Type Barrier

MANUFACTURER

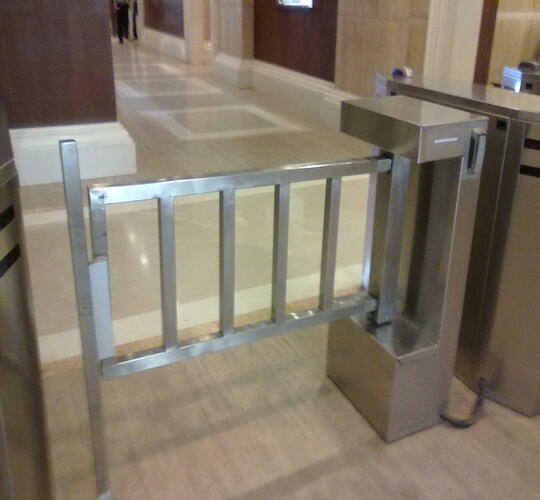

P-Type Swing Barriers

P-Type Swing Barriers are motorized pedestrian access systems manufactured from MS powder-coated or stainless steel, with acrylic or rail-structured flaps. Designed for uni-directional passage up to 1200 mm, they feature sensor-based flap repositioning, microprocessor-based control, DC motor operation, and compatibility with third-party biometric, QR, card, or ESD access systems, ensuring secure and efficient pedestrian flow at commercial and high-security locations.

Key Features:

  • Uni-directional Movement (One-way)
  • Passage 900 - 1200 mm
  • Integration with Biometric device
  • Motorized DC Drive
  • Customized Arm Types
  • Quick open/close 1-2 seconds
Get A Quote

15 Years Service Life

Guaranteed quality & AMC

3 OEM Factories

10,875 sq ft. in Ghaziabad

PAN India + Global

Delivery & Installation

OEM & ODM Capable

Support product customization

Technical Specification

Engineering data at a glance

Smart Turnstiles to control unauthorized pedestrian entry into premises.

Our high-performance Turnstile Systems offer quick passing options along with long time reliability to create an effective unauthorized pedestrian access mitigation solution. Designed for entry/exit points, they offer smooth operation, rugged durability, and enhanced security control.

Truly manufactured in India
All parts manufactured at Indian Factory
ISO 9001:2015 Certified
Manufacturing Standards
Non-monopolized Parts
Industry standard assembly
Spare parts availability
Adequate ready stock
Cabinet Material Color Coated / Stainless Steel 202 / 304
Flap Movement Uni-directional (One side movement)
Flaps Clear Acrylic / Steel Frame
Mechanism Motorized (Automatic)
Lane Width 900 – 1500 mm (Comfortable passage)
Controller 8051 based AT brain, microprocessor control panel
Person Pass Speed Avg. 10–15 ppm (subject to ACS used)
DC Motor 24 V PMDC Dupont Insulated Copper Motor
Operation Voltage 220V AC
Control Options Any 3rd Party Biometric / QR / Card Reader / ESD Combo Tester

Technical Documents

Download the complete
documentation

Product Brochure

Download

Technical Datasheet

Download

How it works

The operating principle

Upon receiving a command from the control switch or access control system, the Turnstile controller activates the motorized power unit and initiates the operating cycle.

The solenoid locks inside the Turnstiles or the DC motor inside the Flap Barrier drives the geardrive, generating crank rotation integrated inside the gearbox assembly.

Flap retracting movement or Turnstile central rotor arm rotation enbales entry/exit of the pedestrian, while integrated LED indicators operate simultaneously during movement for enhanced visibility.

installation & Integration

Site requirements and access-
control integration

Civil & Power Requirements

Pit Not required
Foundation Depth NA
Ground Fastener Anchor Bolt Fastener
Power Required 220 VAC
Foundation NA
Over Ground Area Flat mounted

Access Control Options

RFID Cards
Fingerprint
Remote
No-touch switch
Push-button
3rd party API
Face
QR
LED Indicators

Key Benefits

Why choose HOM Automation

High reliabilty. Solenoid EM locks/PMDC Motor.

Quick deployment within 1 seconds.

Passage - 20 persons per minute.

Non-monopolized parts, spares as per market standard.

Seamless integration with 3rd party ACS-APIs.

Where it’s used

Built for high-security
environments

Hotels

Perimeter and apron protection at international airports & cargo hubs.

Defence & Military

Base entrances, ammunition depots, strategic installations.

Government

Embassies, ministries, parliament & courts, governor residences.

Industrial Plants

Refineries, power plants, seaports, manufacturing & data centres.

Corporate Parks

Tamper-proof control of commercial vehicle lanes & revenue points.

gallery

Installation By
HOM Automation

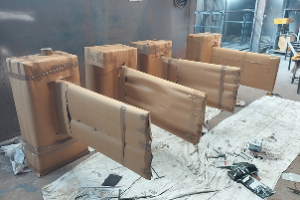

Rectangle 3

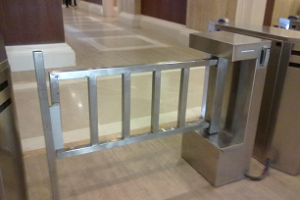

Rectangle 2
Rectangle 5
Rectangle 6
Other Products

Choose the right configuration

ss Flap Barriers

Flap Barriers

Full Height Turnstiles

Full Height Turnstiles

Tripod Turnstiles

Tripod Turnstile

Trusted By India’s Best

Our PAN India clientele

Frequently Asked questions

Answers from our engineering team

The P-Type Swing Barrier features uni-directional movement, motorized DC operation, customizable arm types, and integration with biometric and QR access systems. It also supports quick opening and closing within 1–2 seconds for controlled pedestrian access.
The P-Type Swing Barrier supports passage widths from 900 mm to 1500 mm, making it suitable for wheelchair access, cargo trolley movement, and wider pedestrian entry applications.
Yes, the P-Type Swing Barrier supports integration with biometric devices, QR readers, RFID card readers, and third-party access control systems. Biometric mounting provision is available based on project requirements.
The P-Type Swing Barrier uses a 24V PMDC Dupont insulated copper motor with an 8051 based AT brain microprocessor controller for smooth and automatic barrier operation.
The P-Type Swing Barrier is suitable for offices, metro stations, industrial facilities, commercial buildings, hospitals, and accessibility entry points requiring controlled one-way pedestrian movement.
