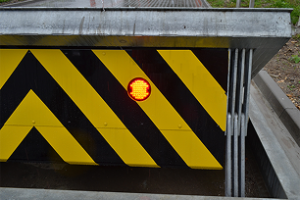

HOM - SH RB 03
Shallow Mount Road Blockers
Key Features:
- Crash Resistant Standards
- EXternal Hydraulic Drive
- Length 3 mtr - 6 mtr
- Quick Deployment in under 4 seconds
- Blocking height of 600 - 1000 mm
- Less civil work required (Shallow RCC)
15 Years Service Life
Guaranteed quality & AMC
3 OEM Factories
10,875 sq ft. in Ghaziabad
PAN India + Global
Delivery & Installation
OEM & ODM Capable
Support product customization
Technical Specification
Engineering data at a glance

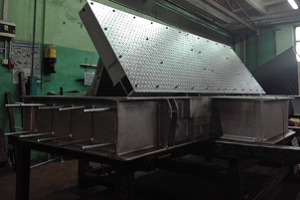

Built to withstand crash impacts
as per K4 Rating Parameters.
Our high-performance Hydraulic Bollards and Road Blockers combine strength, reliability, and intelligent hydraulic engineering to create an effective hostile vehicle mitigation solution. Designed for critical entry points, they offer smooth operation, rugged durability, and enhanced perimeter protection.
| Material | Structural Steel |
|---|---|
| Surface Treatment | Color coating & galvanization treatment |
| Color | Black and Yellow |
| Front Chassis | Linkage structure |
| Blocking Length | 3 mtr to 6 mtr |
| Blocking Height | 500 – 1000 mm |
| Width | 400 – 1000 mm |
| Buried Depth | 100 – 200 mm |
| Driving Mechanism | Hydraulic Power Unit (HPU) |
| Hydraulic Cylinder Mechanism | Double Acting Reversible |
Technical Documents
Download the complete
documentation
How it works
The operating principle
Upon receiving a command from the control switch or access control system, the bollard controller activates the electro-hydraulic power unit and initiates the operating cycle.
The electric motor drives the hydraulic gear pump, generating pressurized oil flow towards the heavy-duty hydraulic cylinder integrated inside the bollard assembly.
Hydraulic pressure enables smooth raising or lowering of the bollard, while integrated LED indicators and audible warning systems operate simultaneously during movement for enhanced operational safety and visibility.
installation & Integration
Site requirements and access-
control integration
Civil & Power Requirements
| Pit Size | 400 x 400 mm |
|---|---|
| Foundation Depth | 1200 mm |
| Drainage | Sump pump |
| Power Supply | 220 VAC |
| Foundation Rebar | Angular sections in place |
| Over Ground Area | Hump-type raised |
Access Control Options
Key Benefits
Why choose HOM Automation
Max security. K4 crash-impact resistance standards.
Quick deployment within 5 seconds.
High load bearing capacity upto 50 Tons.
Non-monopolized parts, spares as per market standard.
Seamless integration with RFID/ANPR/3rd party ACS-APIs.
Built for high-security
environments
Hotels
Perimeter and apron protection at international airports & cargo hubs.
Defence & Military
Base entrances, ammunition depots, strategic installations.
Government
Embassies, ministries, parliament & courts, governor residences.
Industrial Plants
Refineries, power plants, seaports, manufacturing & data centres.
Corporate Parks
Tamper-proof control of commercial vehicle lanes & revenue points.
