MANUFACTURER
HOM - AX RB 04
Hydraulic Axle Spike Barriers
Key Features:
- Crash Resistant Standards
- EXternal Hydraulic Drive
- Length 3 mtr - 6 mtr
- Quick Deployment in under 3 seconds
- Blocking height of 600 mm
- Flat type below ground mounting
15 Years Service Life
Guaranteed quality & AMC
3 OEM Factories
10,875 sq ft. in Ghaziabad
PAN India + Global
Delivery & Installation
OEM & ODM Capable
Support product customization
Technical Specification
Engineering data at a glance

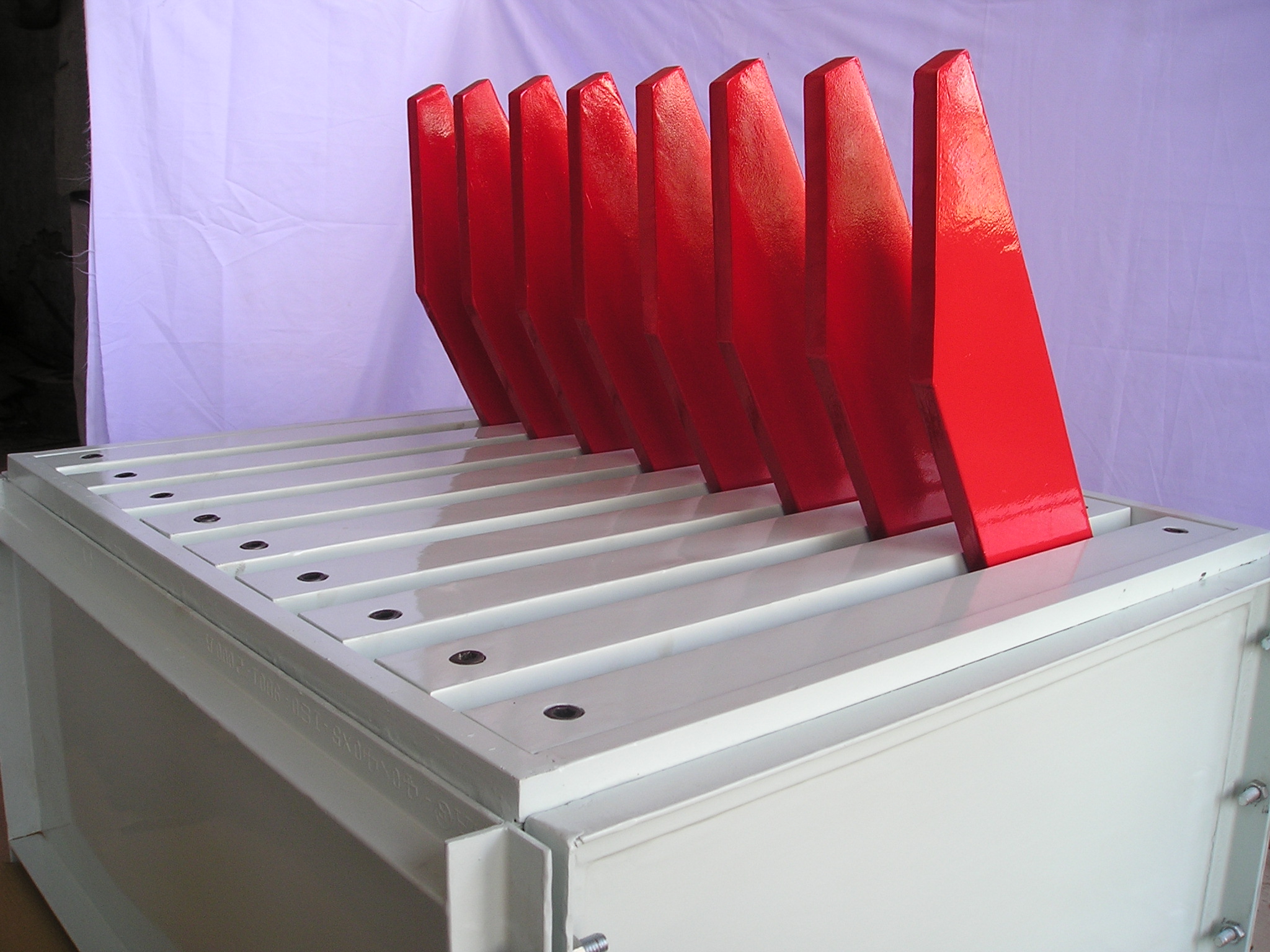

Sharp wedge spike structure to destroy intruder vehicle’s axles and tyres.
Our high-performance Spike Tyre Killer Systems combine strength, reliability, and intelligent engineering to create an effective hostile vehicle mitigation solution. Designed for critical entry points, they offer smooth operation, rugged durability, and enhanced perimeter protection.
| Material | Structural Steel |
|---|---|
| Surface Treatment | Color coating & galvanization treatment |
| Color | Red and Grey |
| Chassis Type | Thick Spike Structure |
| Blocking Length | 3 mtr to 6 mtr |
| Blocking Height | 400 – 600 mm |
| Width | 800 – 1000 mm |
| Buried Depth | 200 – 800 mm |
| Driving Mechanism | Hydraulic Power Unit (HPU) |
| Hydraulic Cylinder Mechanism | Double Acting Reversible |
Technical Documents
Download the complete
documentation
How it works
The operating principle
Upon receiving a command from the control switch or access control system, the Tyre Killer controller activates the motorized/hydraulic power unit and initiates the operating cycle.
The electric motor drives the geardrive/hydraulic pump, generating crank rotation integrated inside the Tyre Killer assembly.
Crank movement drives shaft rotation which enbales raising or lowering of the spikes, while integrated LED indicators and audible warning systems operate simultaneously during movement for enhanced operational safety and visibility.
installation & Integration
Site requirements and access-
control integration
Civil & Power Requirements
| Pit Size | 600 x 3000 mm |
|---|---|
| Foundation Depth | 200 mm |
| Ground Fastener | RCC |
| Power Required | 220 VAC |
| Foundation Rebar | Angular sections in place |
| Over Ground Area | Flat surface |
Access Control Options
Key Benefits
Why choose HOM Automation
Max security. High crash-impact resistance standards.
Quick deployment within 2-3 seconds.
Motorized/Hydraulic Drive Options.
Non-monopolized parts, spares as per market standard.
Seamless integration with RFID/ANPR/3rd party ACS-APIs
Built for high-security
environments
Hotels
Perimeter and apron protection at international airports & cargo hubs.
Defence & Military
Base entrances, ammunition depots, strategic installations.
Government
Embassies, ministries, parliament & courts, governor residences.
Industrial Plants
Refineries, power plants, seaports, manufacturing & data centres.
Corporate Parks
Tamper-proof control of commercial vehicle lanes & revenue points.
Installation By
HOM Automation
