MANUFACTURER
HOM - SS Flap Barriers 03

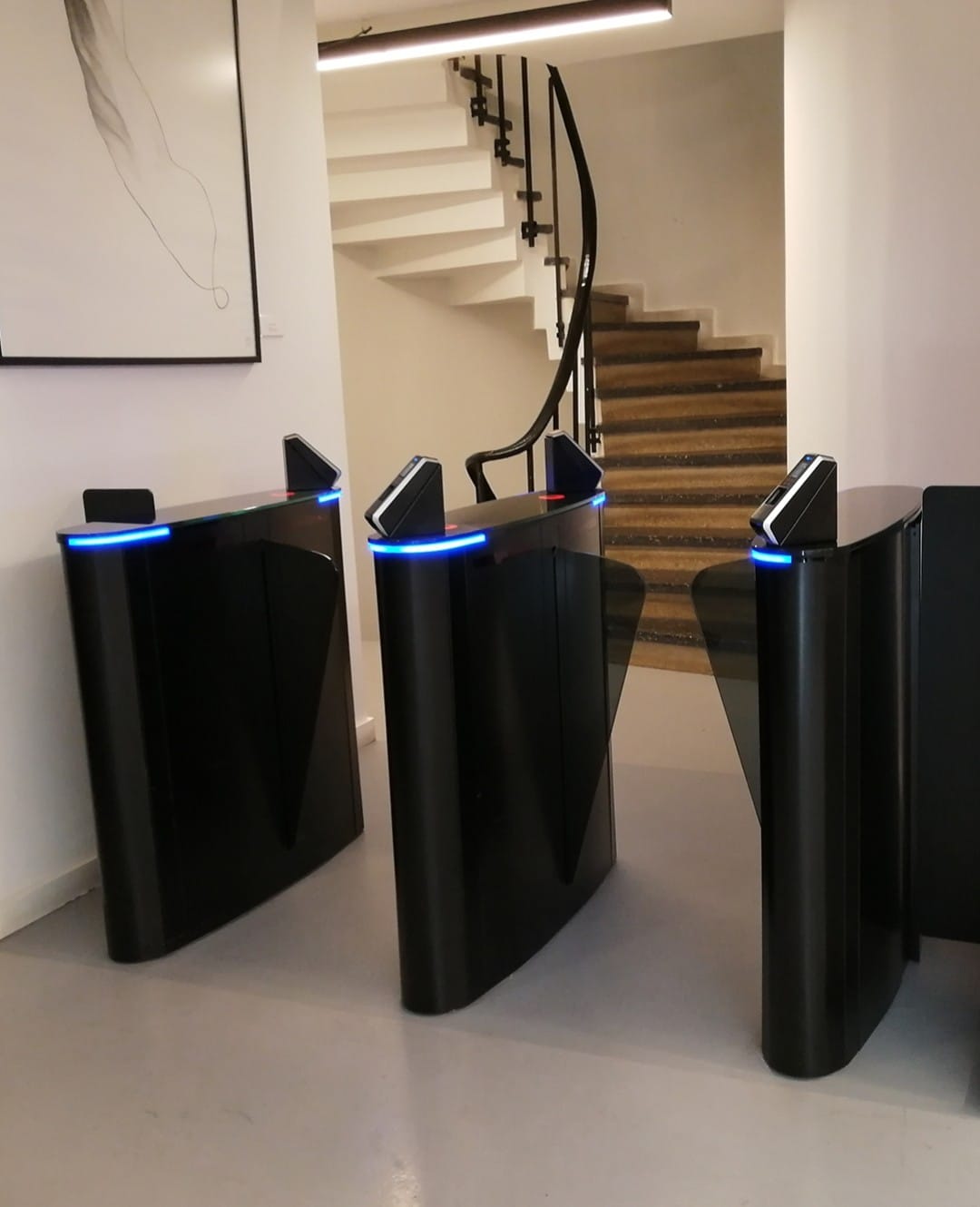

Flap Barriers
Key Features:
- Bi-directional Movement (IN + OUT)
- Passage 600 mm - 900 mm
- Integration with Biometric/QR Readers
- Steel Cabinets with acrylic flaps
- LED indicators
- Quick movement DC motor
15 Years Service Life
Guaranteed quality & AMC
3 OEM Factories
10,875 sq ft. in Ghaziabad
PAN India + Global
Delivery & Installation
OEM & ODM Capable
Support product customization
Technical Specification
Engineering data at a glance
Smart Turnstiles to control unauthorized pedestrian entry into premises.
Our high-performance Turnstile Systems offer quick passing options along with long time reliability to create an effective unauthorized pedestrian access mitigation solution. Designed for entry/exit points, they offer smooth operation, rugged durability, and enhanced security control.
| Cabinet Material | Stainless Steel 202 / 304 |
|---|---|
| Available Lane Arrangements | Single Flap / Double Side Flap |
| Color | Silver (SS) |
| Flaps | Clear Acrylic |
| Sensors Equipped | 6 IR Beam Sensors |
| Mechanism | Motorized |
| Movement | Bi-directional (Entry + Exit from Same System) |
| Lane Indicators | Yes, Arrow + Cross |
| Lane Width | 600 mm (Comfortable Passage) |
| Flap Cabinet Size | 1180L × 1000H × 325W mm |
Technical Documents
Download the complete
documentation
How it works
The operating principle
Upon receiving a command from the control switch or access control system, the Turnstile controller activates the motorized power unit and initiates the operating cycle.
The solenoid locks inside the Turnstiles or the DC motor inside the Flap Barrier drives the geardrive, generating crank rotation integrated inside the gearbox assembly.
Flap retracting movement or Turnstile central rotor arm rotation enbales entry/exit of the pedestrian, while integrated LED indicators operate simultaneously during movement for enhanced visibility.
installation & Integration
Site requirements and access-
control integration
Civil & Power Requirements
| Pit | Not required |
|---|---|
| Foundation Depth | NA |
| Ground Fastener | Anchor Bolt Fastener |
| Power Required | 220 VAC |
| Foundation | NA |
| Over Ground Area | Flat mounted |
Access Control Options
Key Benefits
Why choose HOM Automation
High reliabilty. Solenoid EM locks/PMDC Motor.
Quick deployment within 1 seconds.
Passage - 20 persons per minute.
Non-monopolized parts, spares as per market standard.
Seamless integration with 3rd party ACS-APIs.
Built for high-security
environments
Hotels
Perimeter and apron protection at international airports & cargo hubs.
Defence & Military
Base entrances, ammunition depots, strategic installations.
Government
Embassies, ministries,
parliament &
courts,
governor residences.
Industrial Plants
Refineries, power plants, seaports, manufacturing & data centres.
Corporate Parks
Tamper-proof control of commercial vehicle lanes & revenue points.
Installation By
HOM Automation
Choose the right configuration
Our PAN India clientele
