MANUFACTURER
HOM - DA CRB 02
Hydraulic CRB 24
Key Features:
- Crash Resistant Standards
- Hydraulic Drive - Drop Arm Type
- On ground chassis assembly
- Quick Deployment in 5 seconds
- 165 mm dia - giant steel arm
- Dual arm locking supports
15 Years Service Life
Guaranteed quality & AMC
3 OEM Factories
10,875 sq ft. in Ghaziabad
PAN India + Global
Delivery & Installation
OEM & ODM Capable
Support product customization
Technical Specification
Engineering data at a glance
Built to withstand crash impacts
as per K4 Rating Parameters.
Our high-performance Crash-rated Boom Barrier Systems combine strength, reliability, and intelligent hydraulic engineering to create an effective hostile vehicle mitigation solution. Designed for critical entry points, they offer smooth operation, rugged durability, and enhanced perimeter protection.
| Material | Structural Steel |
|---|---|
| Surface Treatment | Color coating & galvanization treatment |
| Color | Grey |
| Boom Material | Structural Steel |
| Boom Locking Supports | Yes, two supports |
| Boom Arm Dia | 165 mm |
| Boom Arm Length | 6 mtr |
| Blocking Height | 900 – 1000 mm |
| Driving Mechanism | Hydraulic Power Unit (HPU) |
| Movement Type | Standard drop arm |
Technical Documents
Download the complete
documentation
How it works
The operating principle
Upon receiving a command from the control switch or access control system, the barrier controller activates the motorized/hydraulic power unit and initiates the operating cycle.
The electric motor drives the geardrive/hydraulic pump, generating crank rotation integrated inside the barrier assembly.
Crank movement drives shaft rotation which enbales raising or lowering of the barrier, while integrated LED indicators and audible warning systems operate simultaneously during movement for enhanced operational safety and visibility.
installation & Integration
Site requirements and access-
control integration
Civil & Power Requirements
| Pit Size | 400 x 400 mm |
|---|---|
| Foundation Depth | 300 mm |
| Fastener | Anchor T-bolts |
| Power Required | 220 VAC |
| Foundation Rebar | Angular sections in place |
| Over Ground Area | Raised at least 150 mm |
Access Control Options
Key Benefits
Why choose HOM Automation
Max security. K4 crash-impact resistance standards.
Quick deployment within 6-8 seconds.
Motorized/Hydraulic Drive Options.
Non-monopolized parts, spares as per market standard.
Seamless integration with RFID/ANPR/3rd party ACS-APIs.

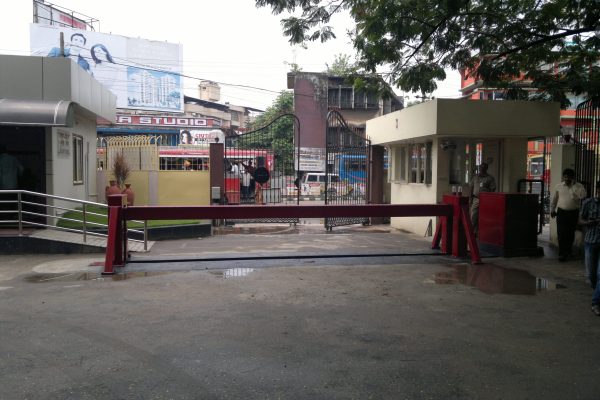

Built for high-security
environments
Hotels
Perimeter and apron protection at international airports & cargo hubs.
Defence & Military
Base entrances, ammunition depots, strategic installations.
Government
Embassies, ministries, parliament & courts, governor residences.
Industrial Plants
Refineries, power plants, seaports, manufacturing & data centres.
Corporate Parks
Tamper-proof control of commercial vehicle lanes & revenue points.

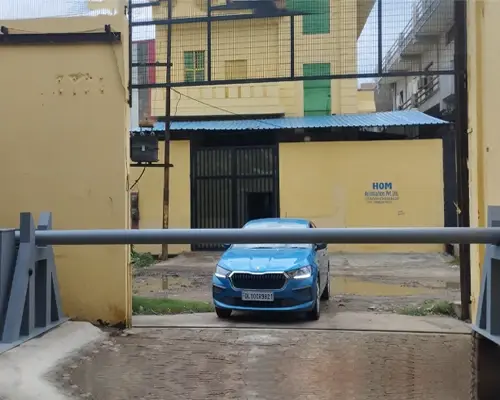

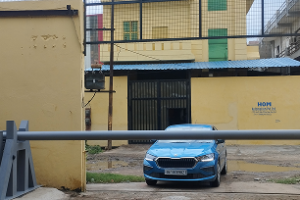

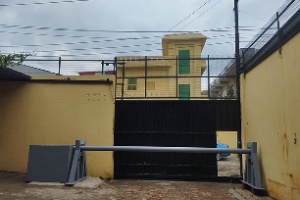

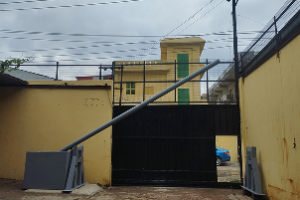

Installation By
HOM Automation
Our PAN India clientele
