MANUFACTURER

HOM - EXTRA LONG BB 06

Long Arm Barriers (9M)

Name: Long Arm Barriers (9M)
Brand: Hom Automation
Rating: 4.5 (30 reviews)

Long Arm Barriers are automatic vehicle access systems with zinc-coated CRCA steel cabinets and aluminium boom arms with steel counterweights. Featuring one support, microprocessor-based control, integrated safety sensors, and 8–10 second rising/lowering operation, these barriers ensure secure and efficient traffic management at industrial complexes, and high-security areas requiring extended boom reach.

Key Features:

High Torque 24V DC Motor
Stronger Arm 100X50X1.5MM
Integration with UHF/ANPR
Low Power Consumption Mechanism
Carbon Steel Gear Unit
Zinc Coated Color Cabinet

Technical Specification

Engineering data at a glance

Smart Boom Barriers to mitigate unauthorized entry into premises.

Our high-performance Boom Barrier Systems offer quick open/close options along with long time reliability to create an effective unauthorized vehcile access mitigation solution. Designed for entry/exit points, they offer smooth operation, rugged durability, and enhanced security control.

Truly manufactured in India
All parts manufactured at Indian Factory

ISO 9001:2015 Certified
Manufacturing Standards

Non-monopolized Parts
Industry standard assembly

Spare parts availability
Adequate ready stock

Cabinet Material	Zinc Coated CRCA Steel
Cabinet Size	350W × 450L × 1050H mm
Surface Treatment	Color coating & galvanization treatment
Color	Black (Check stock before buying)
Boom Material	Aluminium
Boom Supports	Yes, one support
Counterweights	Steel Plates
Boom Arm Size	100 × 50 mm
Boom Arm Length	9 mtr to 12 mtr
LED Indicator	Red / Green / Yellow (Optional)

Technical Documents

Download the complete
documentation

Product Brochure

Technical Datasheet

How it works

The operating principle

installation & Integration

Site requirements and access-
control integration

Pit Size	450 x 450 mm
Foundation Depth	100 mm
Ground Fastener	Anchor Fastener
Power Required	220 VAC
Foundation	PCC
Over Ground Area	100 mm raised

RFID-UHF

ANPR

Remote

Push Button

Biometric

3rd party API

Loop Detector

Photocell

Traffic Lights

Key Benefits

Why choose HOM Automation

Where it’s used

Built for high-security
environments

gallery

Installation By
HOM Automation

Other Products

Choose the right configuration

Railway LC Gate Barriers

Folding Arm Barriers

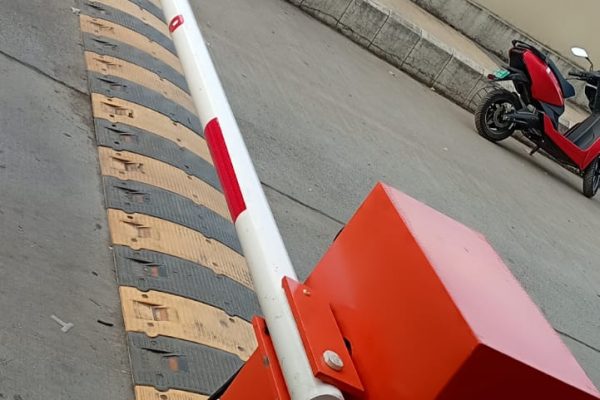

Toll Plaza Barriers (Swing Arm)

Trusted By India’s Best

Our PAN India clientele

Frequently Asked questions

Answers from our engineering team

What is the maximum entrance width covered by a Long Arm Barrier?

The Long Arm Barrier supports boom lengths from 9 to 12 meters, making it suitable for wide roadways, logistics facilities, industrial entrances, ports, and commercial access points.

Can the Long Arm Barrier integrate with RFID, UHF, and ANPR systems?

Yes, the barrier is compatible with UHF RFID readers, ANPR cameras, remote controls, and automated access control systems for efficient vehicle management.

What type of motor powers the Long Arm Barrier?

The barrier uses a high-torque 24V DC motor combined with a carbon steel gear unit to provide smooth operation, reliable performance, and lower energy consumption.

Is the Long Arm Barrier suitable for industrial and logistics applications?

Yes, its extended boom length and heavy-duty construction make it ideal for factories, warehouses, freight terminals, ports, container yards, and large commercial facilities.

What safety features are included in the Long Arm Barrier?

The barrier can be equipped with photocell sensors, loop detectors, flashing indicators, and traffic signaling systems to enhance operational safety and prevent accidental boom movement during vehicle passage.

INDIAN MANUFACTURERS SINCE 1993

Long Arm Barriers (9M)

15 Years Service Life

3 OEM Factories

PAN India + Global

OEM & ODM Capable

Engineering data at a glance

Smart Boom Barriers to mitigate unauthorized entry into premises.
